LED Panel

Professional LED Panel Solution

Quality Control & Your Reliable Partner
Full series

Customization solution available

High Quality

50000hrs lifespan

 High Light Efficiency

Options 150lm/w -120lm/w-100lm/w

Low UGR

UGR<19 with Micro Prismatic diffuser

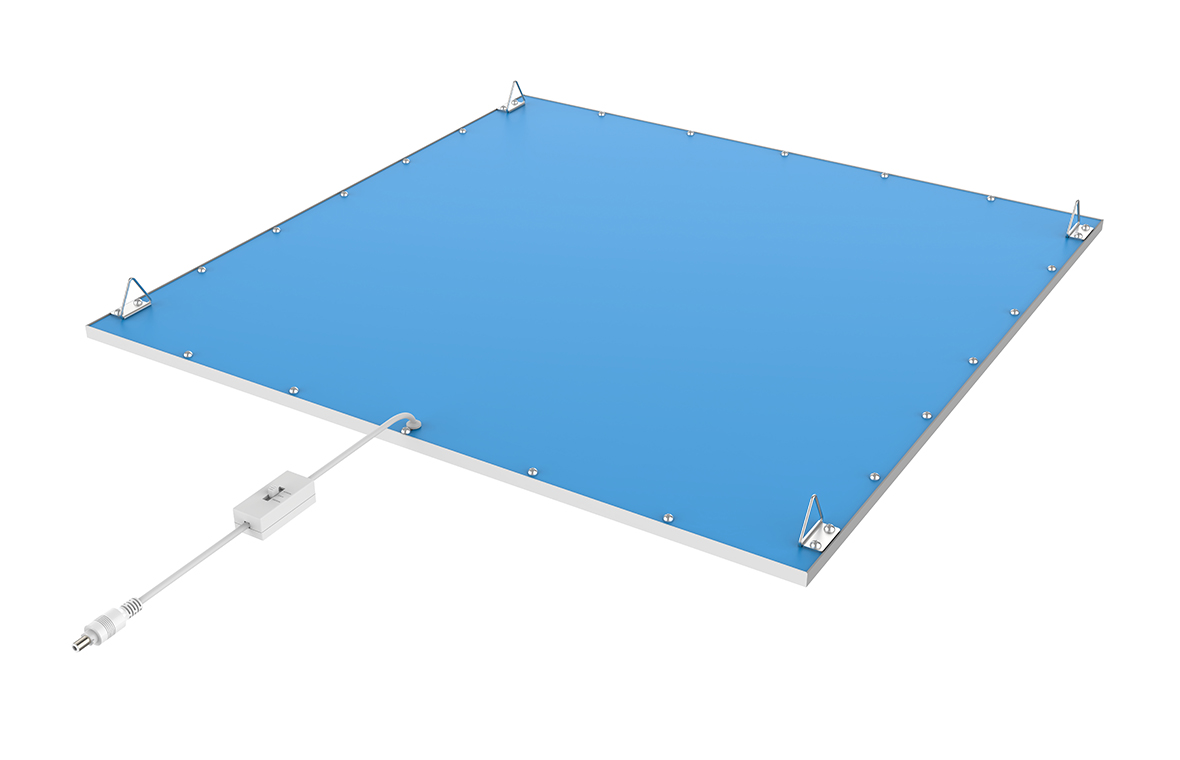

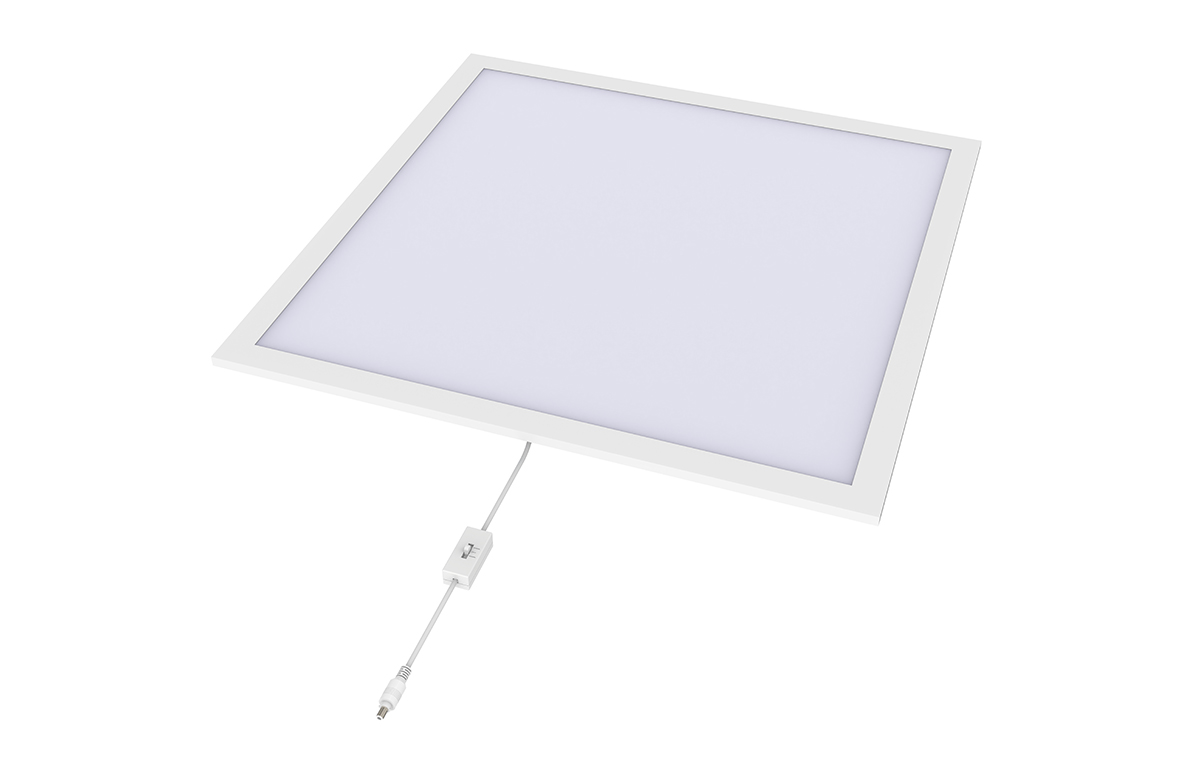

Edgelit Panel 150lm/w (Flicker-free)

High light efficiency & energy saving
Micro Prismatic diffuser UGR<19
3T LGP, PMMA material, no yellowing issues

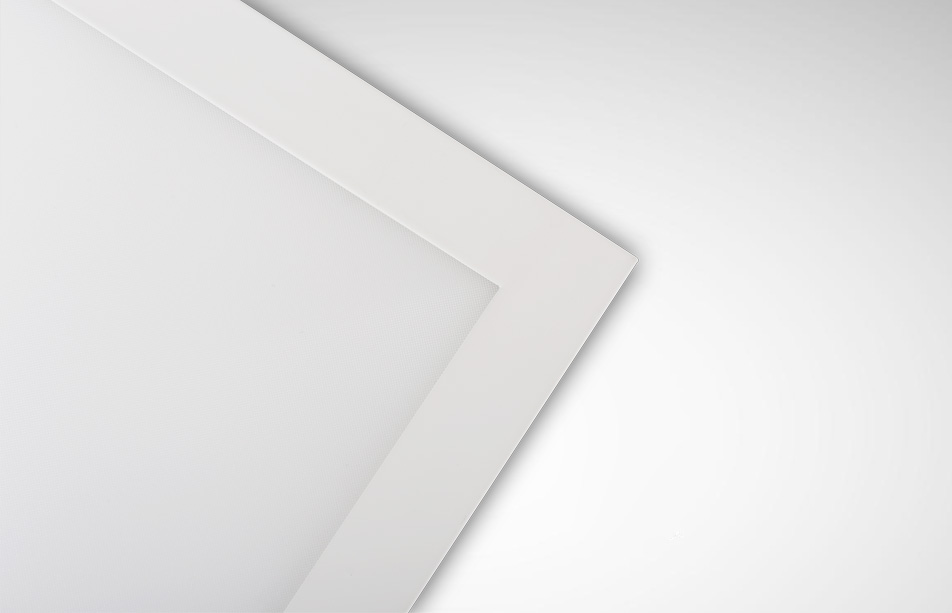

AL6063 aluminum Frame with Double-sided welding
Suitable for recessed, suspended, ceiling installation
Comply with CE, RoHS and newest ERP standard

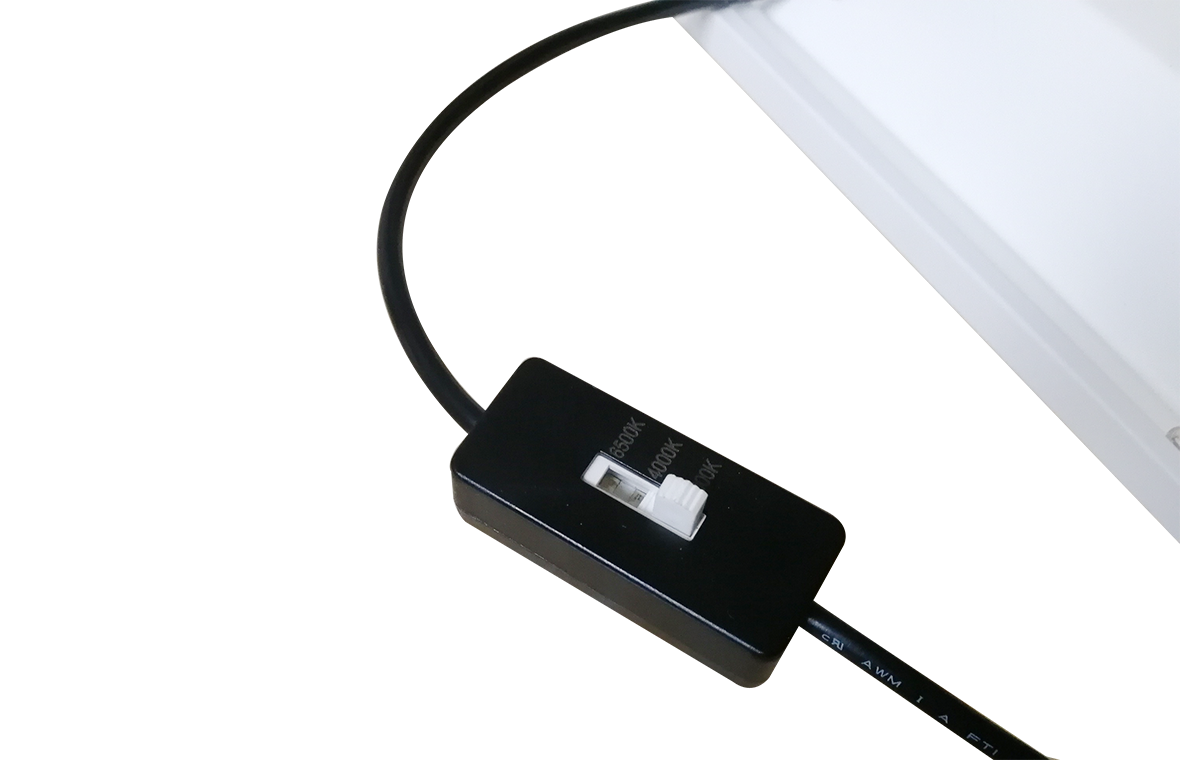

Easy to change the CCT

Before installation, you can choose the right need CCT easily.
3000k/4000k/6500k

High Light Efficiency

25W 150LM/W
30W 120LM/W
36W 100LM/W

Uniform & gentle light

Uniform and gentle light
No shadow, 6063 aluminum alloy with good heat dissipation

Lifespan 50,000hrs

Big brand LED chips & drivers
Many tests for EMC, IES, high voltage test and integrating sphere test & etc,

TECHNISCHE FEATURES

    • Dimension
      295*595*10  |  595*595*10  |  620*620*10  |  295*1195*10
    •    Power                                                                                18W-40W
    • UGR
      UGR<19 ( Mrico-Prismatic Diffuser )
    • SDCM
      <5
    •   CCT (K)                                                                              3000K /  4000K / 6500K
    •  Input Voltage (V)                                                                 200-240V
    • Light Efficiency
      150lm/w-120lm/w-100lm/w   @ 4000K
    •    Function                                                                             0-10V Dimming / DALI Dimming / CCT Dimming
    •   Warranty                                                                             5 Years (3 Years Optional )
