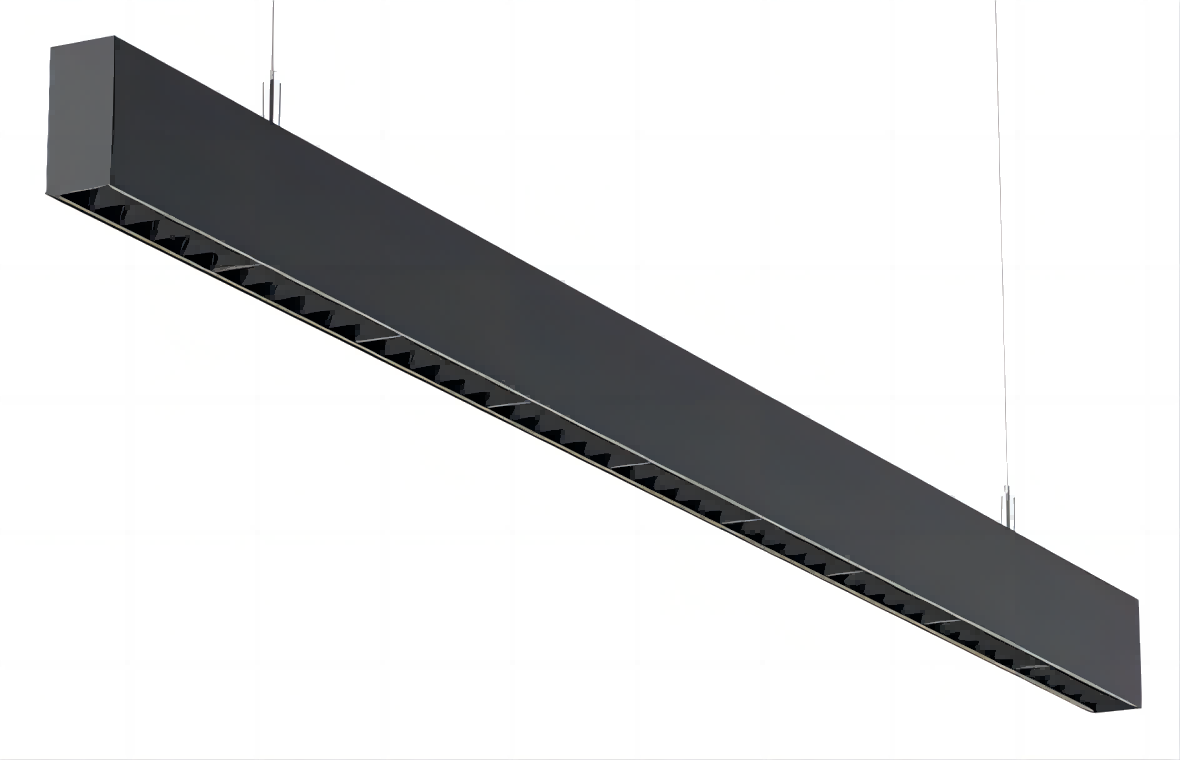

LED Linear Light

Flexible LED Linear light

Linkable & Single Lamp
High quality

longer lifespan

Customized design

Solution based on Projects

Flexible

Free your lighting design

Linkable

Seamless connection

High Light efficiency

100lm/w-130lm/w optional
high lumen and brightness to create best lighting

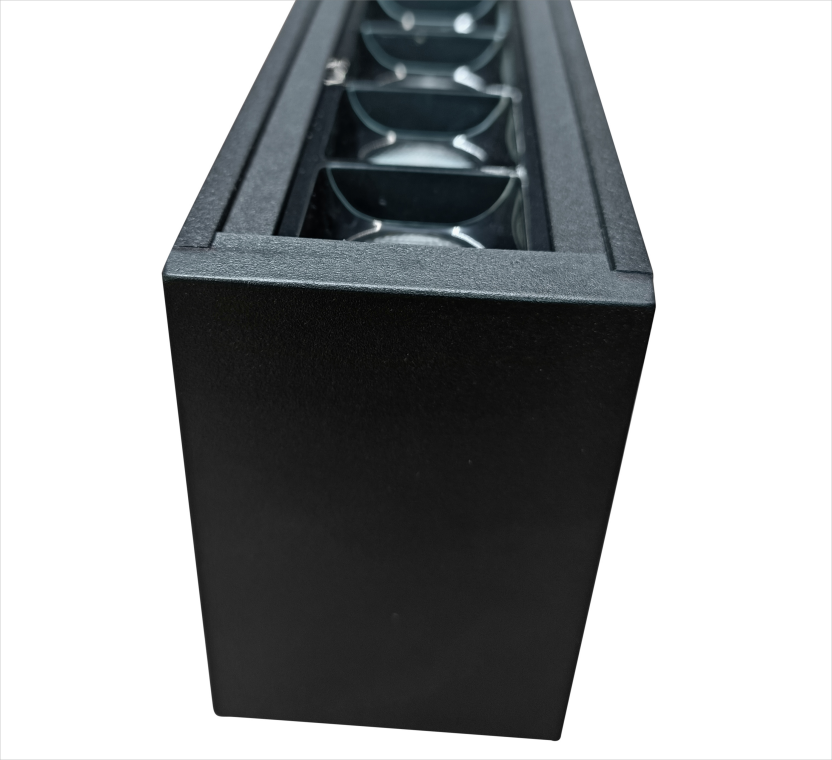

Thick aluminum, good heat dissipation

12mm thickness aluminum with good quality surface praying, which ensures the high-end and smooth aluminum surface
the aluminum housing have different color to choose: silver, white, black, wooden, etc,

Seamless and Infinite linkable

Private mold for the easier connector, which ensure easier aluminum and wire to connectSeamless continuous connection, no gap between two linear light connections
there is pre-wired cable inside the aluminum with UL passed wire connector. user only need to connect the whole ampsdirectly, it is really easy to install.

TECHNISCHE FEATURES

    • Width * Height (mm)
      50* 75 (mm)
    •   Length                                                                               600mm / 900mm / 1200mm / 1500mm / 2400mm / Customized
    •    Power                                                                                20-40W / M
    •   Light Efficiency                                                                  100-110 lm/W
    • Cover
      Reflective cup Cover
    • Linkable
      Yes
    •    CCT (K)                                                                           3000K / 4000K  / 6500K
    •   Input Voltage (V)                                                              200-240V (50-60Hz)
    • LED Chips
      OSRAM / Sumsung
    •    Driver                                                                                Philips / Lifud  Driver
    •   Housing Color                                                                   White /  Silver / Black / Wood / Customized
    •   Function                                                                             0-10V Dimming / DALI Dimming
  •   Warranty                                                                            5 Years
