LED HCL Solution

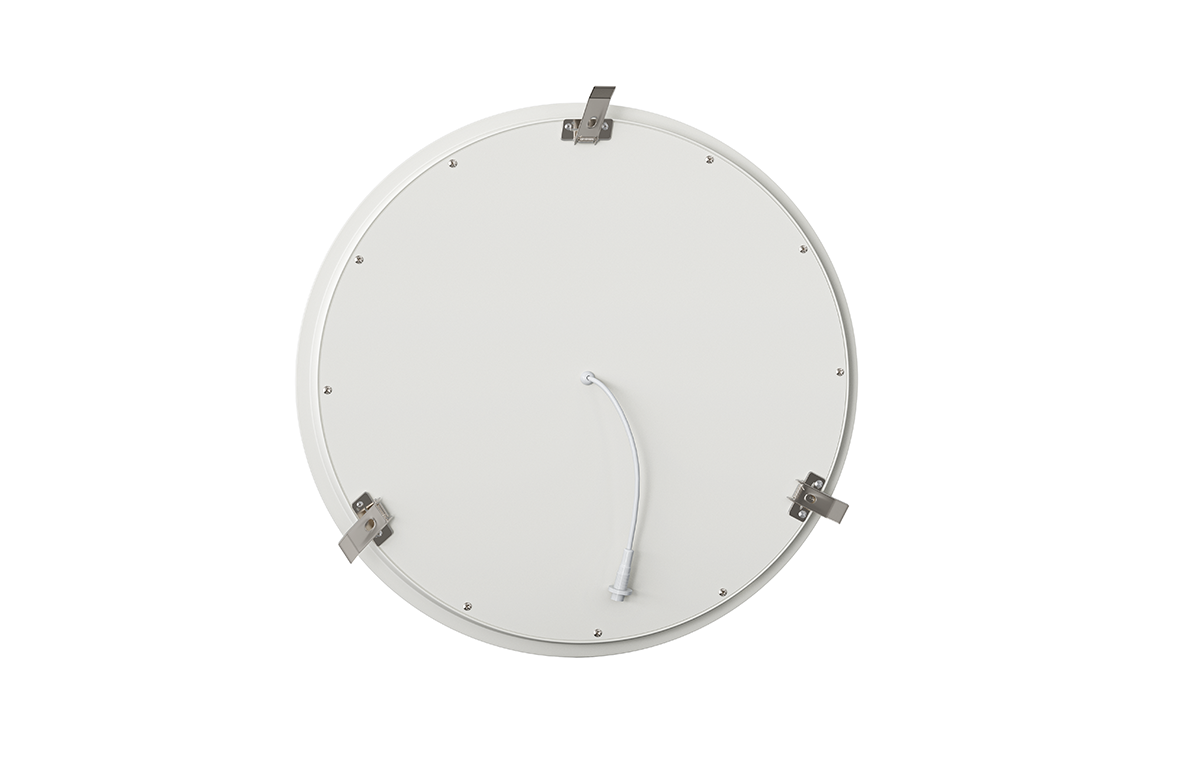

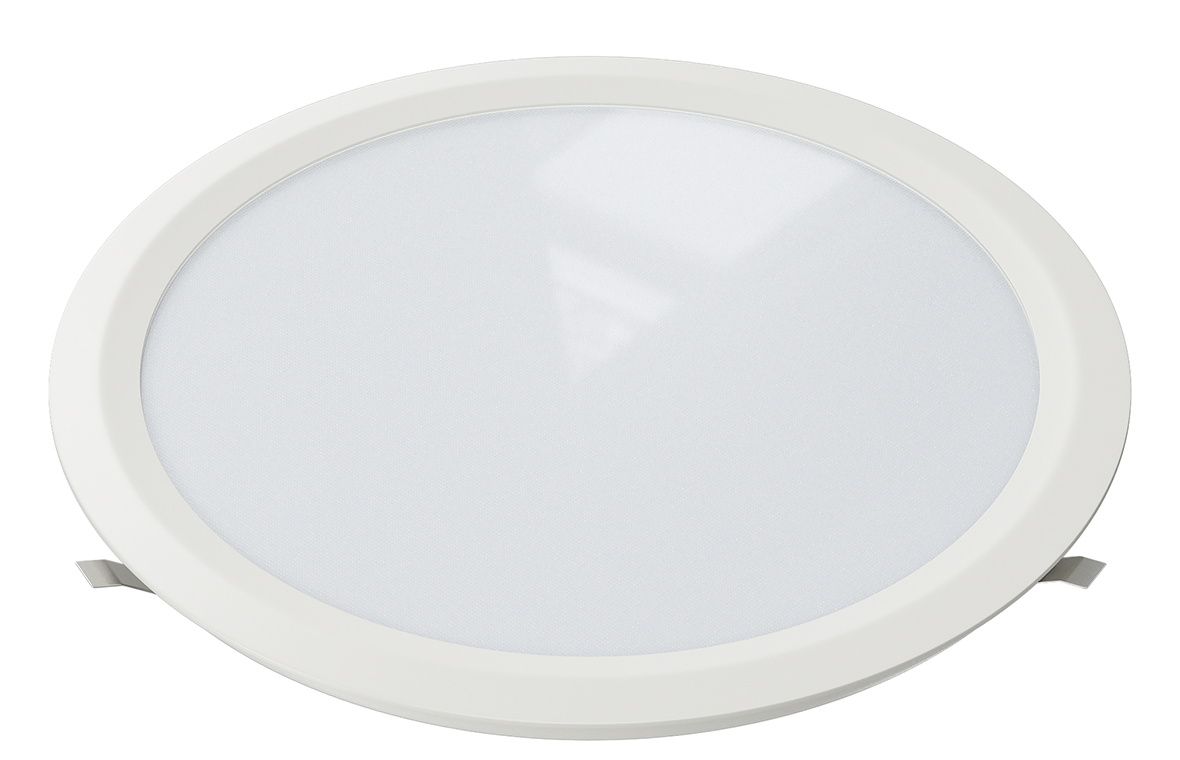

DT8 Round Panel 30w 120lm/w

Special dimension D450*H24mm (Cut out:421mm)
Micro Prismastic diffuser, Special diffuser, UGR<19 Uniform lighting
Thick aluminum, SMD2835, High quality & long lifespan

DT8 Smart LED Panel

It is designed for the smart indoor lighting, which support tunable white dimming by DALI or PUSH.

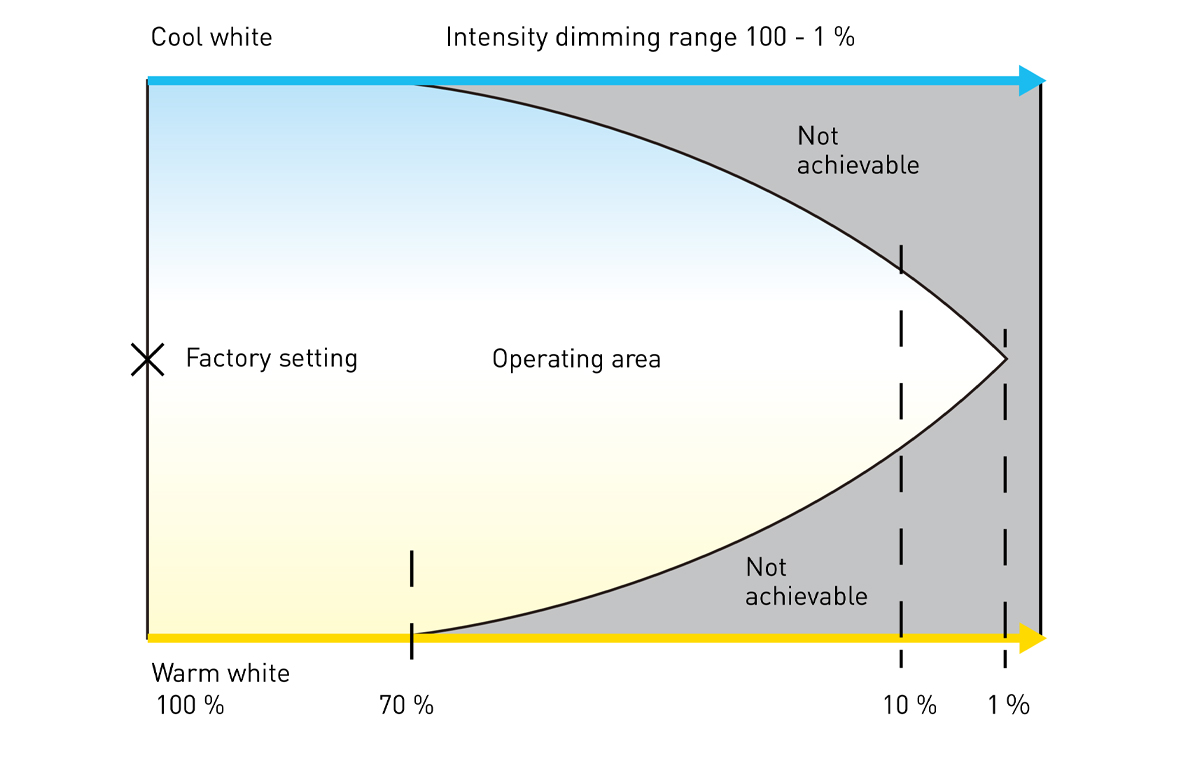

Tunable White Functionality

The driver has 2 output channels used to control the intensity and temperature of white colour as well known as “Tunable White.
These drivers respond to DALI type 8 (DT8) commands, which In practice means that they only have 1 common address for both.
The tunable white level of intensity and colour temperature can be set either with a DALI command or by PUSH switch control.
The driver will operate correctly once tunable white LED module parameters are programmed to the driver.
The higher the brightness, the wider the color temperature range can be obtained.

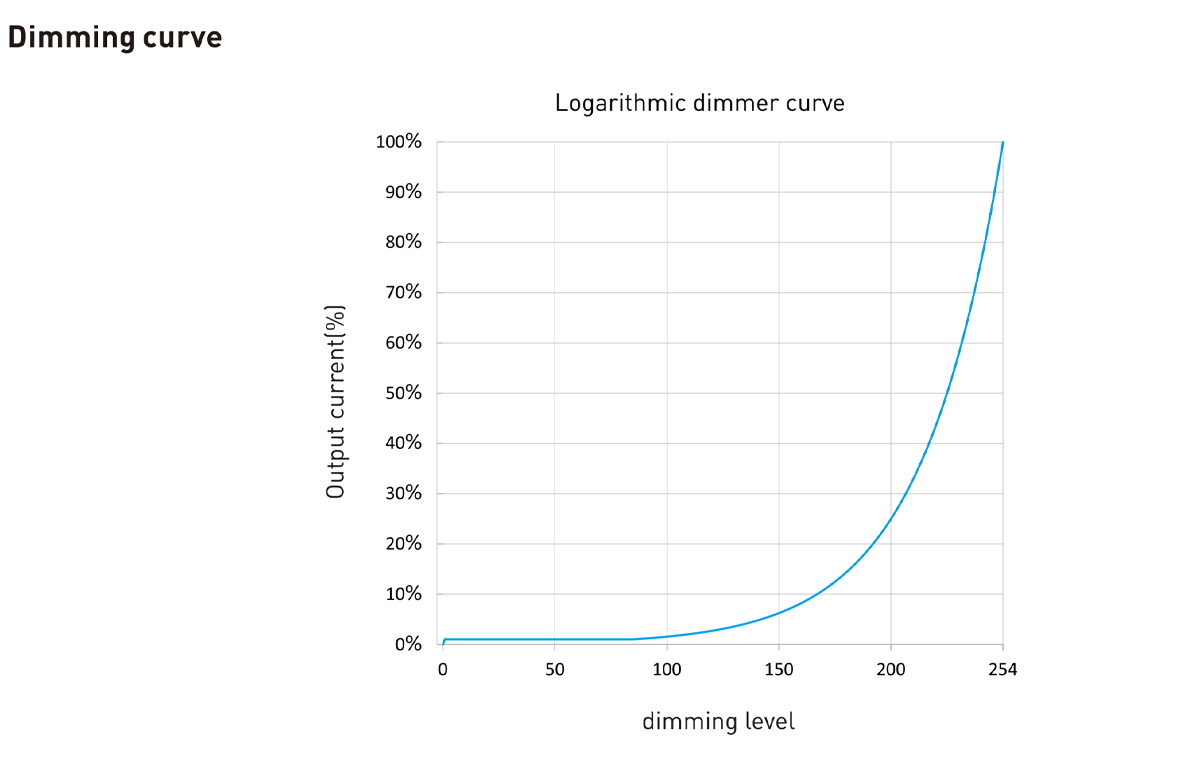

Dimming Curve

The dimming curve can be selected by DALI configuration.
The default is logarithmic dimming curve.
