LED HCL Solution

Small Sensor Width 1.68cm

Integrating Daylight sensing and PIR sensing together,
it is PHILIPS newest sensor module which achieve more function and ensure the beautiful outlook at the same time.
SR Panel is the smartest lighting solution to have energy saving and labor costs saving.

Mico-Prismatic Diffuser-UGR<19

To make sure the UGR<19, we use the micro prismatic diffuser.
The one we use is more smaller spot than the diffuser in market, it offers more soft and uniform lighting.

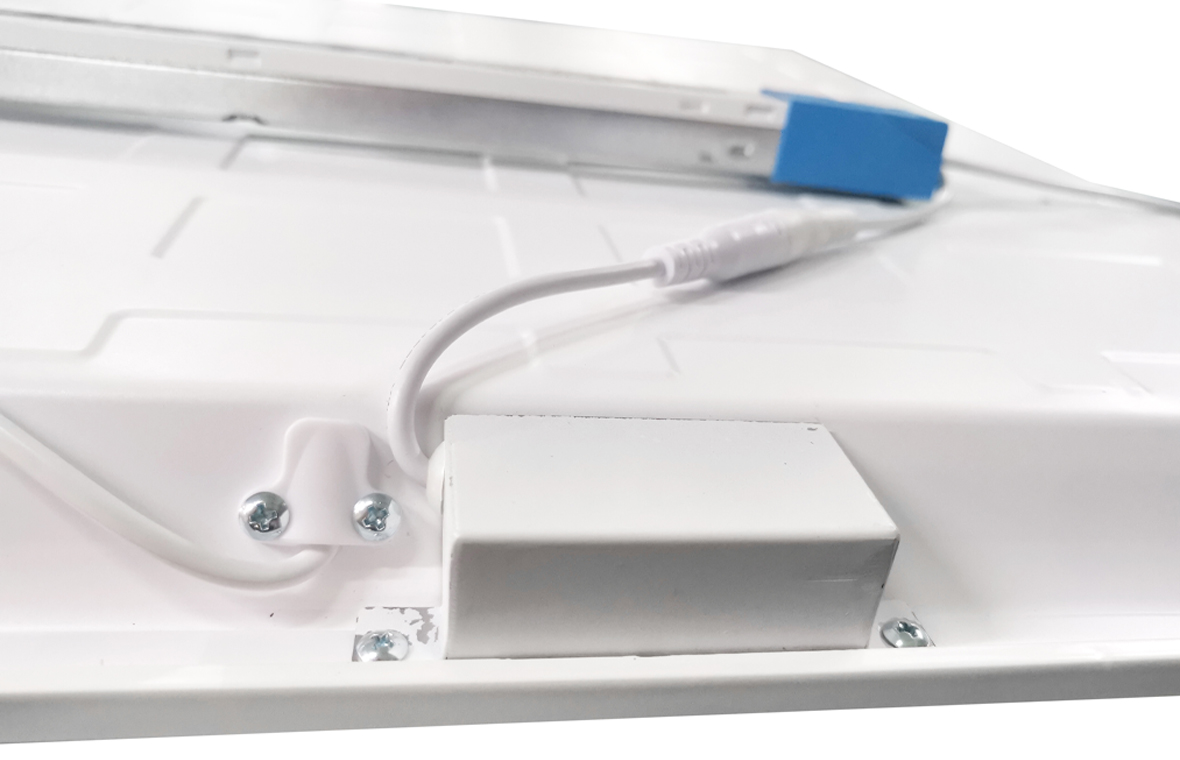

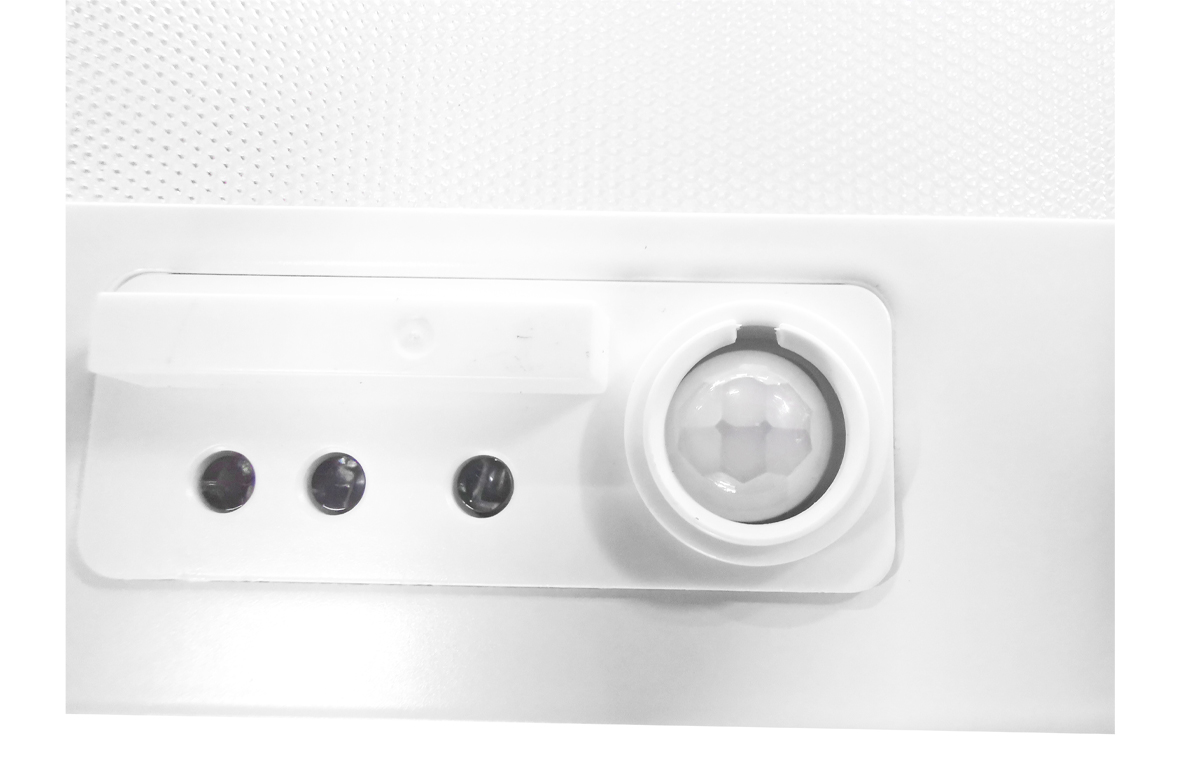

Patent Sensor Box

We open private mold for the sensor box which will protect the PHILIPS sensor well.
We focus on all details and offer the best lighting solution.

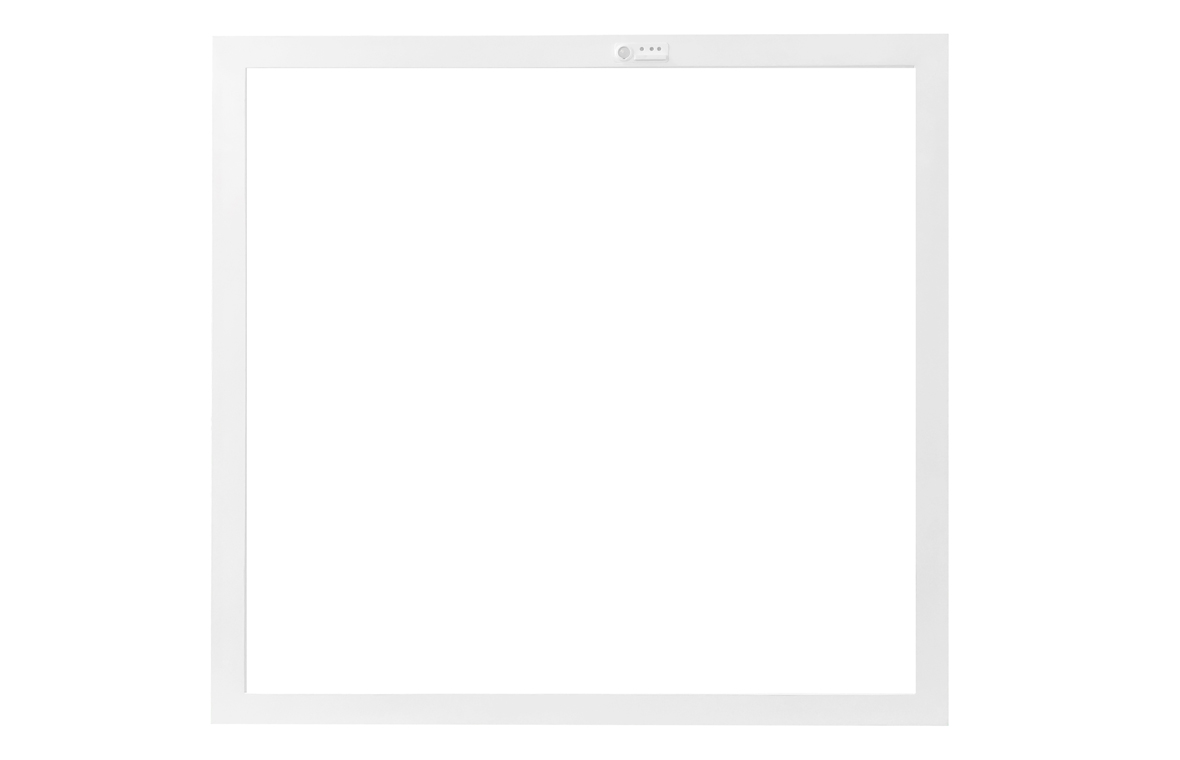

Clean & Simple Outlook

We took more than 6 months to design based on customer and market requirement.
We focus on all details and consider every part is more easier for customer to do the installation.

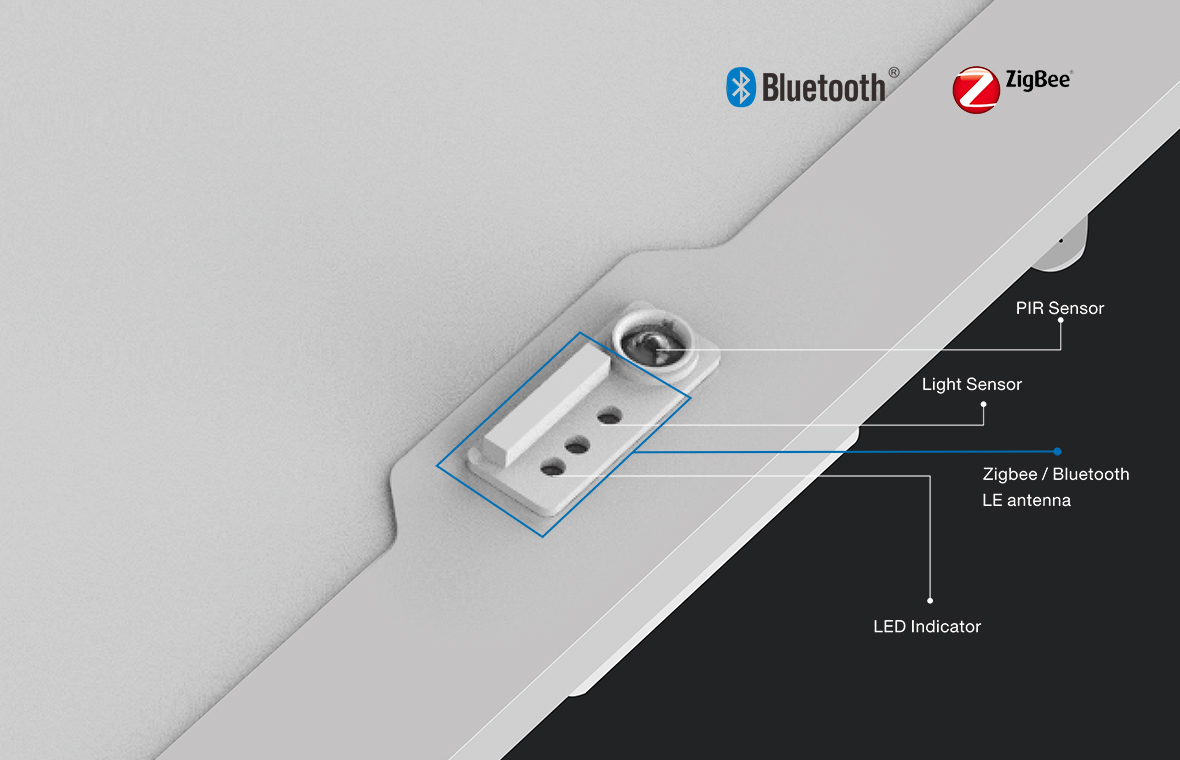

ALL IN ONE SENSOR

Occupancy sensing(PIR), daylight harvesting and task tuning in one device.
Simple but perfect.

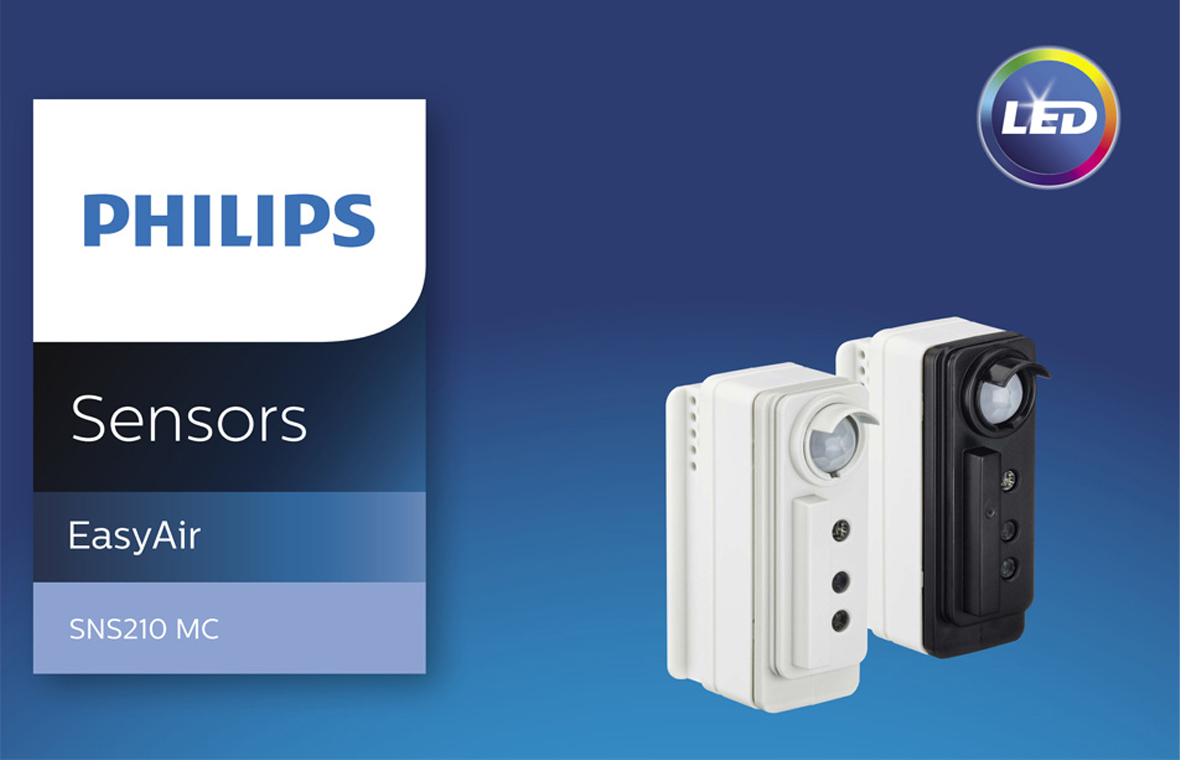

Philips SNS210 Sensor

Philips EasyAir SNS210 MC is the ideal solution for per-luminaire control of new light luminaires. It combines PIR sensing and daylight sensing in a single, it operates with the established Xitanium SR driver together. An intuitive app makes configuration and commissioning through Philips MasterConnect App.

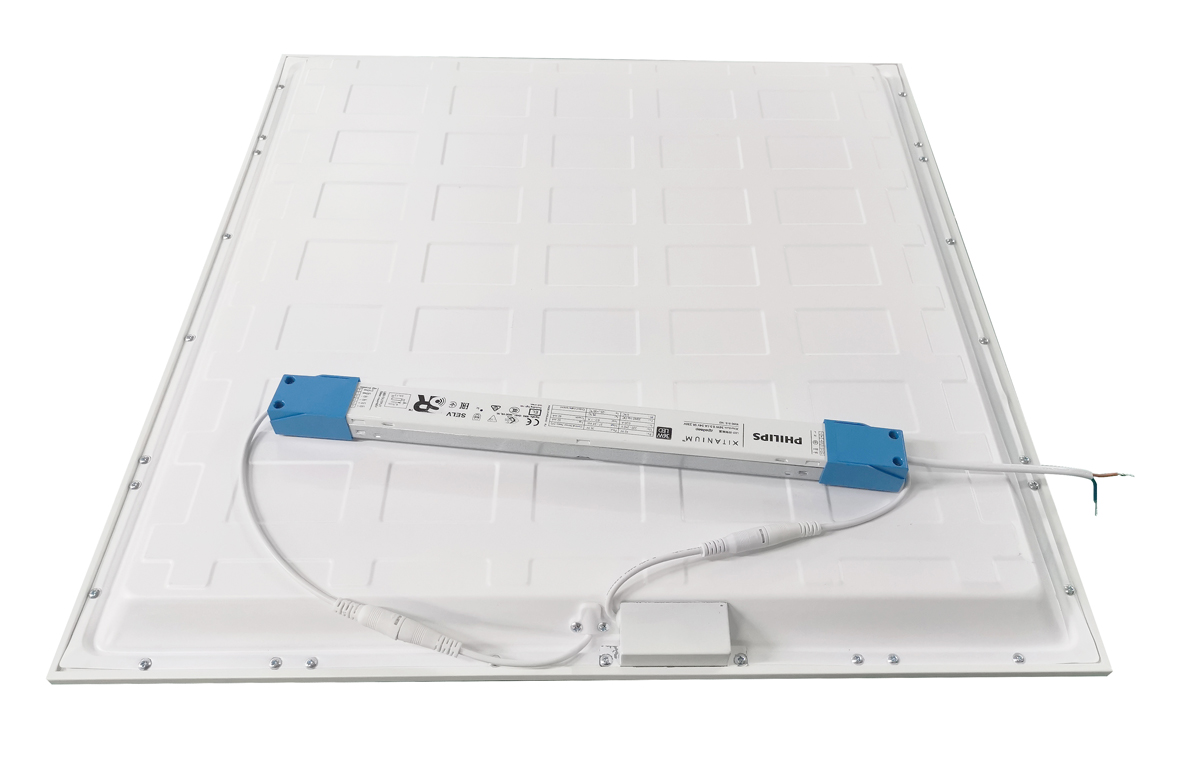

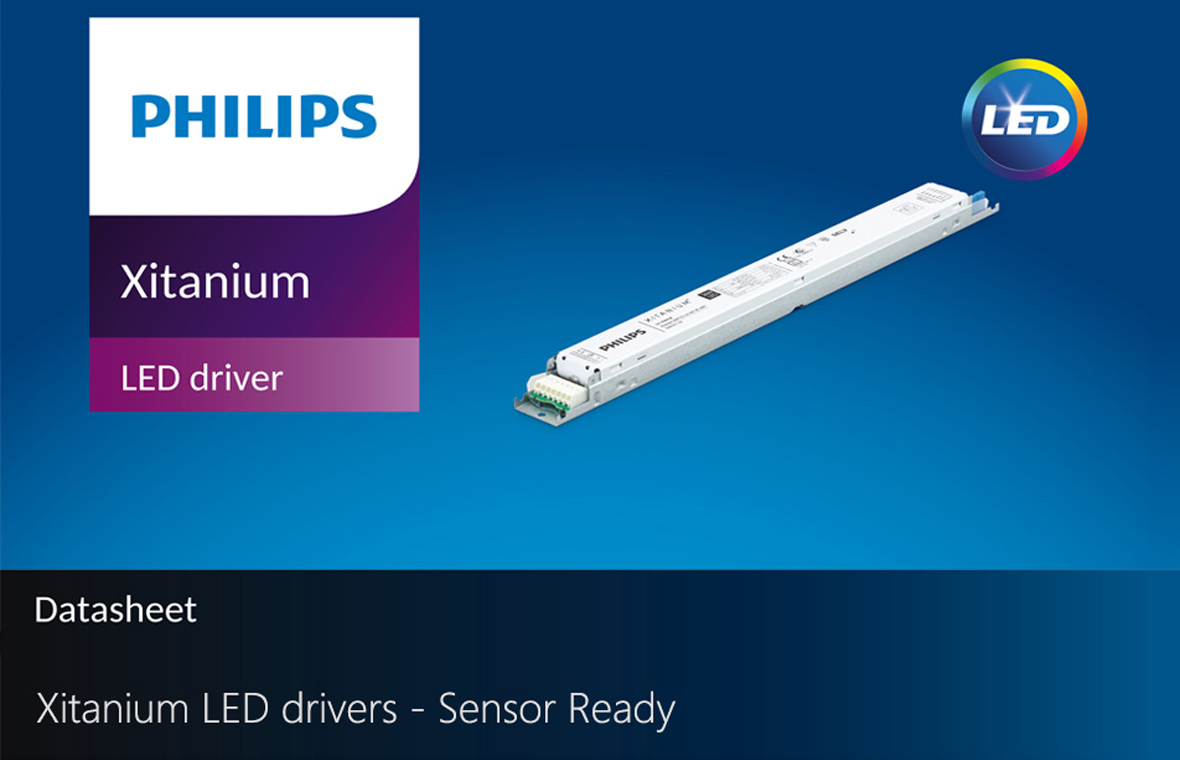

Philips SR Flextune Driver

Philips Xitanium SR FlexTune drivers are ideal for use with sensors and building management systems. With its integrated DALI 2.0 power supply. it is easy to power sensors and wireless modules directly from the driver. It also features integrated energy metering for use in building management systems from the SR Certified partner program. This program with key building management and sensor vendors ensures that certified sensors and controllers work seamlessly with the Xitanium SR driver.

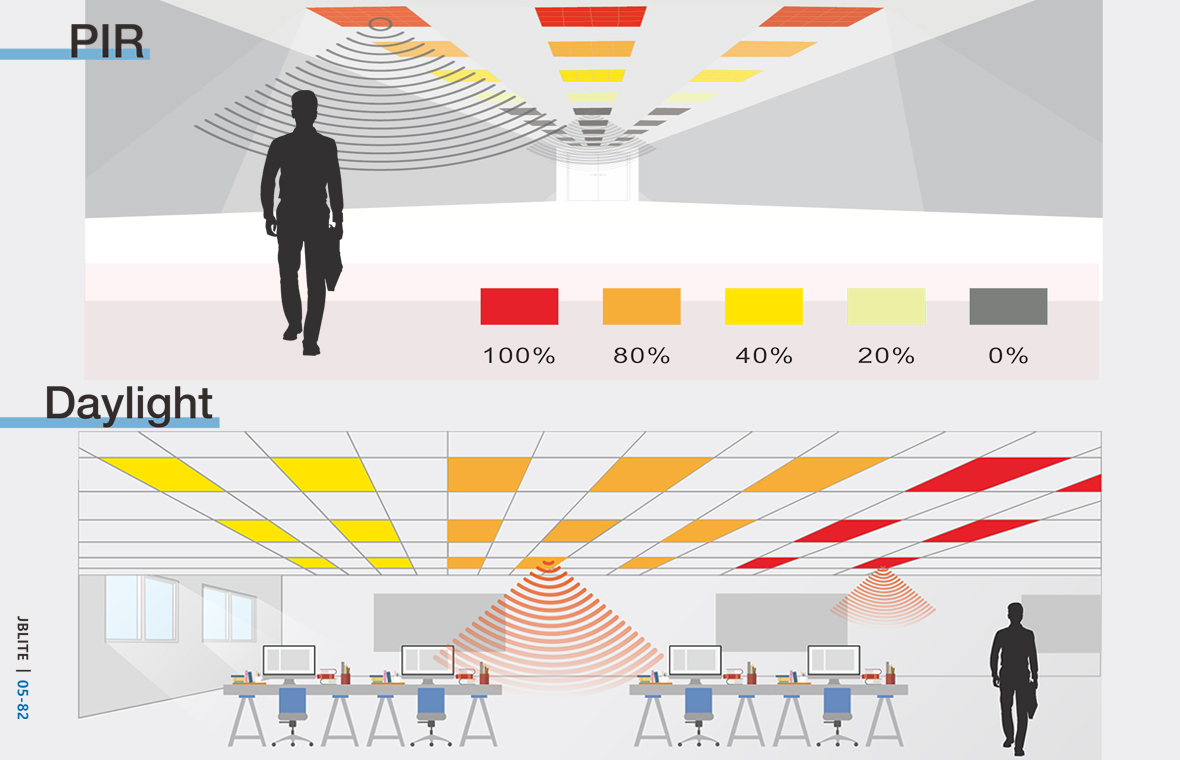

DAYLIGHT+PIR SENSING

Smart lighting save energy.
Light up in need while it's in need only.

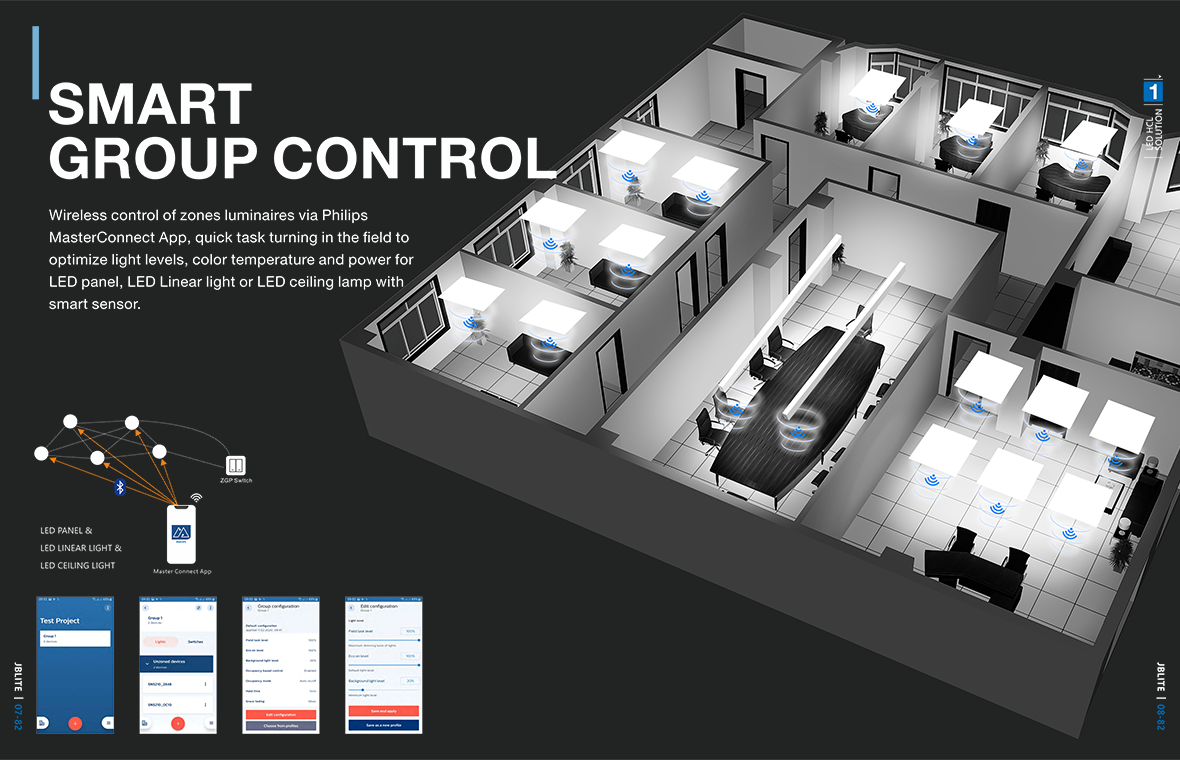

GROUPING CONTROL

Wireless control of zones luminaires via Philips MasterConnect App, quick task turning in the field to optimize light levels, color temperature and power for LED panel with smart sensor.

TECHNISCHE FEATURES

    • Dimension
      595*595*30  |  620*620*30  |  295*1195*30
    •    Power                                                                                36W
    • UGR
      UGR<19
    • SDCM
      <3
    •    CCT (K)                                                                           3000K / 4000K  / 6500K
    •   Input Voltage (V)                                                              200-240V (50-60Hz)
    • Sensor
      Philips EasyAir Sensor SNS210 MC
    •    Driver                                                                                Philips Xitanium SR FlexTune Driver ( with DALI-2, D4i certificate )
    •   Function                                                                            Integrated function: PIR sensing; Daylight sensing; Wireless control

  •   Warranty                                                                            5 Years
