LED HCL Solution

CCT Dimming

Philips FlexTune Driver

Sensor

PIR Sensing + Daylight

 Philips

Philips MasterConnect APP

 Low UGR

Soft and safe lighting

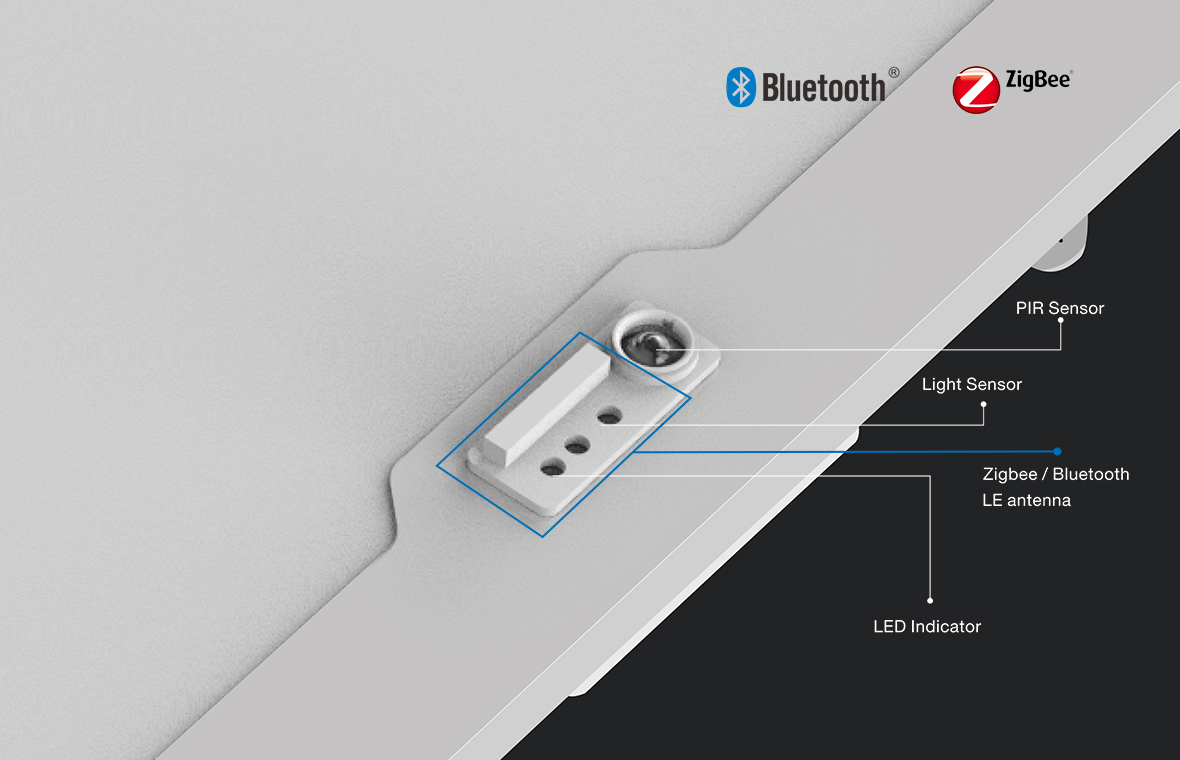

ALL IN ONE SENSOR

Occupancy sensing(PIR), daylight harvesting and task tuning in one device.
Simple but perfect.

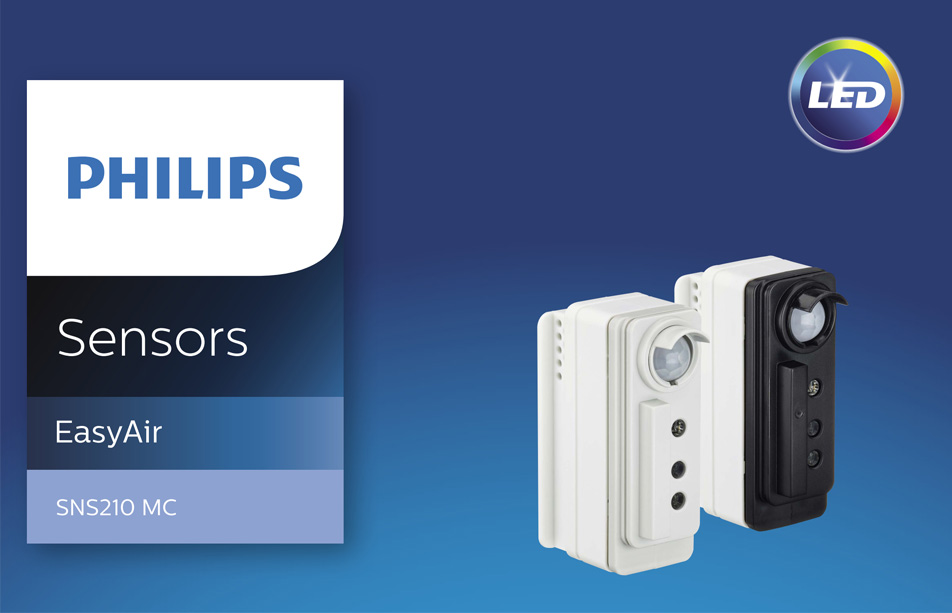

PHILIPS SNS210 SENSOR

Philips EasyAir SNS210 MC is the ideal solution for per-luminaire control of new light luminaires. It combines PIR sensing and daylight sensing in a single, it operates with the established Xitanium SR driver together. An intuitive app makes configuration and commissioning through Philips MasterConnect App.

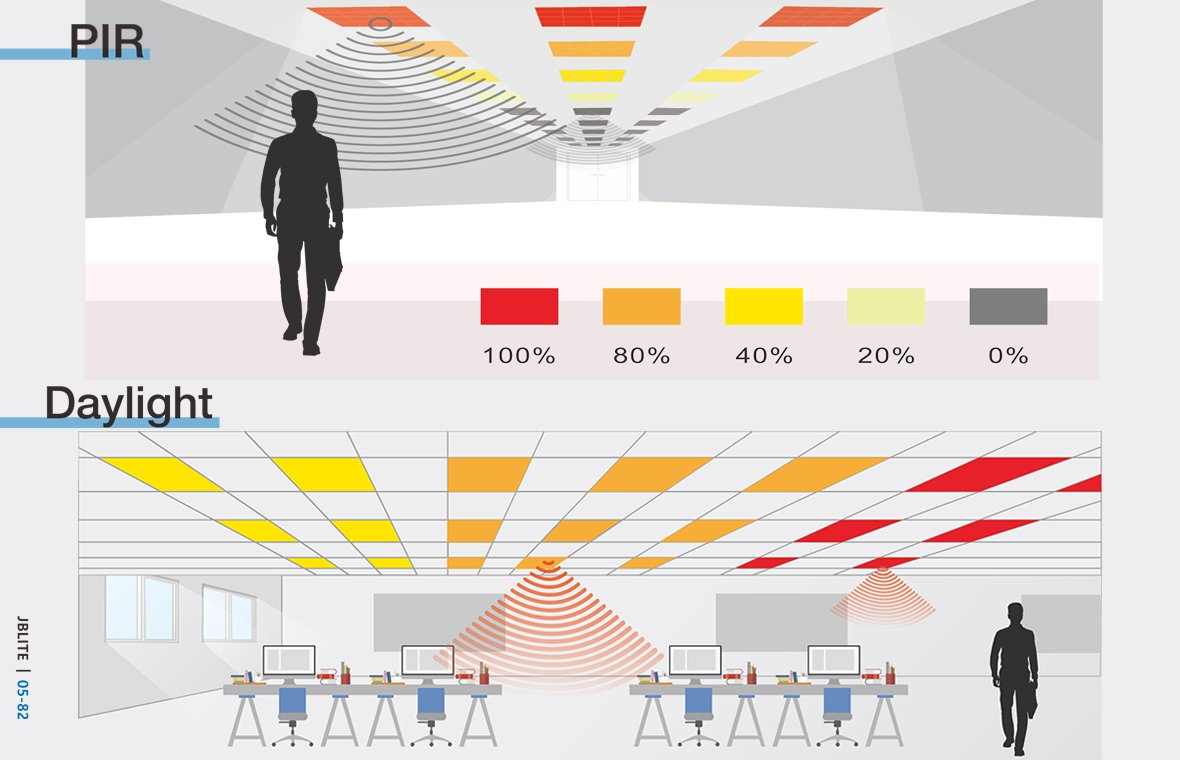

DAYLIGHT+PIR SENSING

Smart lighting save energy.
Light up in full while it's in need only.

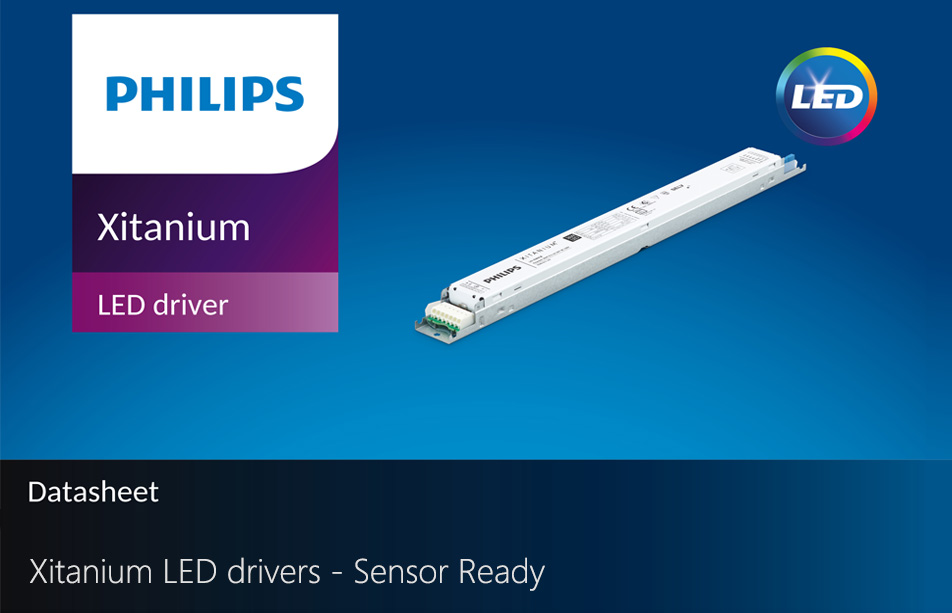

PHILIPS SR FlexTune DRIVER

The Philips Xitanium SR FlexTune drivers make it possible to create excellent Tunable White systems without compromising on quality of light.The unique FlexTune dimming feature ensures flicker-free dimming performance down to 1% over the full CCT range. The drivers can be installed in both wireless SR systems (for example, in combination with EasyAir SNS210 or SNS410) & DALI systems.

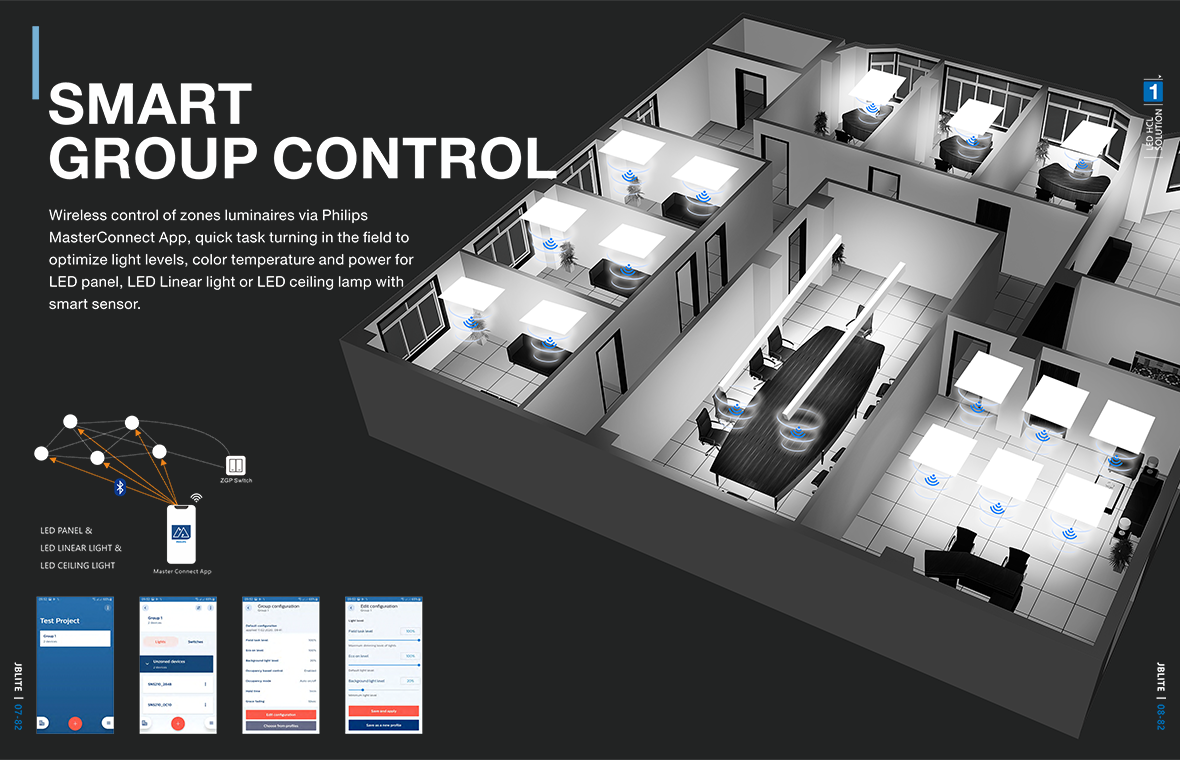

GROUPING CONTROL

Wireless control of zones luminaires via Philips MasterConnect App, quick task turning in the field to optimize light levels, color temperature and power for LED panel with smart sensor.

TECHNISCHE FEATURES

    • Dimension
      595*595*10  |  620*620*10  |  295*1195*10
    •    Power                                                                                36W
    • UGR
      UGR<19
    • SDCM
      <3
    •    CCT (K)                                                                           2700K-6500K
    •   Input Voltage (V)                                                              200-240V (50-60Hz)
    • Sensor
      Philips EasyAir Sensor SNS210 MC
    •    Driver                                                                                Philips Xitanium SR FlexTune Driver ( with DALI-2, D4i certificate )
    •   Function                                                                            Integrated function: PIR sensing; Daylight sensing; Wireless control

  •   Warranty                                                                            5 Years
